EVO CORE
TECHNICAL SPECIFICATION

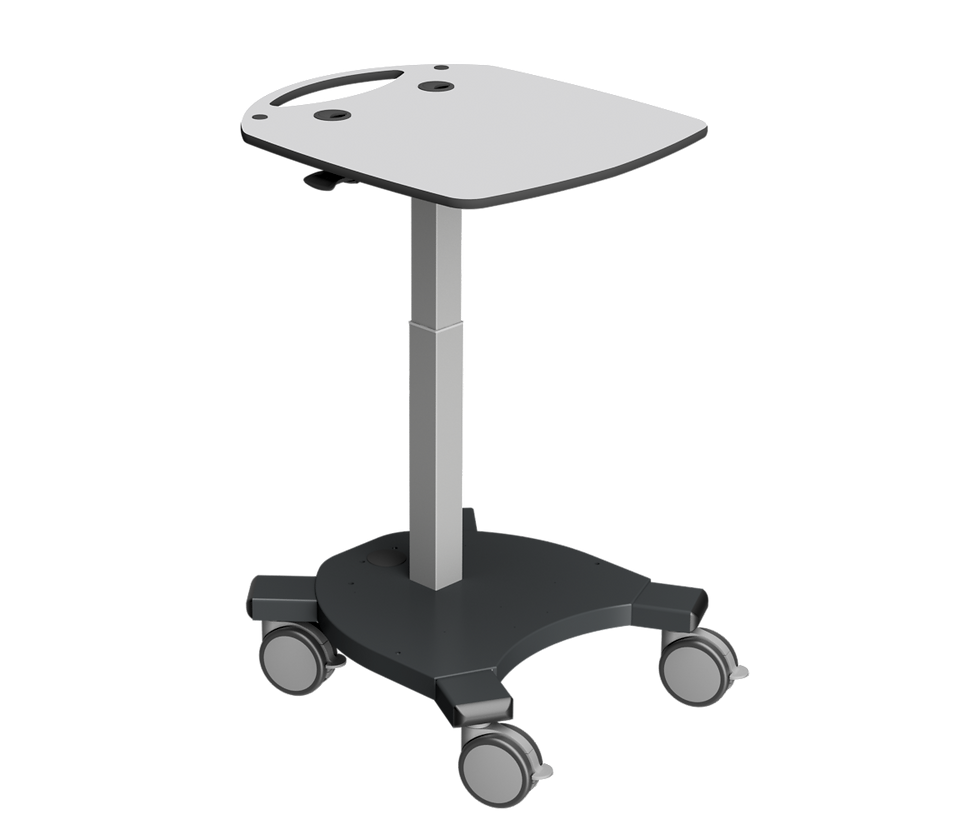

03-10001 Front DS View.png
Screenshot 2025-06-18 at 11.39.56.png

DIMENSIONS

Single Castor:

A: 1035      B: 795.    C: 240      D: 205

​

Dual Castor:

A: 1020.    B: 780    C: 240.     D: 190​​​

​

KEY FEATURES

  • All of our carts are height adjustable and operated with a gas strut

  • Lever can be positioned on the left or right

  • Large Trespa top with rear handle 20kg max load (other options available)

  • Heavy duty steel base with ergonomic curved front recess

  • Cable entry holes on both top and base

  • Accessory mounting holes on both top and base

  • 4 off braking swivel castors

  • High ground clearance

  • Materials: Trespa, Aluminium, Steel, Plastic

  • Finish: Anodised, Powder Coat Black Grey RAL7021

  • Weight: 28kg

CLEANING

Refer to the Evo Carts cleaning guide for detailed information.

​

Tested active agents:

  • Detergent and disinfectants

  • Alcohol based

  • Amonia

  • Chlorine

OPERATION AND MAINTENANCE

Secure any loose items before moving

​

Carefully lift castors over large thresholds

​

Periodic general inspection, check fixings are secure, check free movement of any moving part

Different side views of the technical cart, Evo Core
